Code Flow: Drifting Model

This chapter walks the drifting model one function at a time, in the order that the calls fire when a user presses Run model. Pair it with the theory chapter Drifting Risk Calculations, which derives the formulas that each function below implements.

Entry point

DriftingModelMixin.run_drifting_model() is phase 1 of CalculationTask (see Code Flow: From “Run model” to Results). It takes a single data dict and writes

  • self.drifting_allision_prob

  • self.drifting_grounding_prob

  • self.drifting_report

  • self.allision_result_layer, self.grounding_result_layer

  • LEPDriftAllision.setText(...) / LEPDriftingGrounding.setText(...)

Entry: compute/drifting_model.py:2070 – run_drifting_model()

Top-level call tree

run_drifting_model(data)
  |
  +-- _build_transformed(data)                                         # UTM projection + geom prep
  |     +-- prepare_traffic_lists(data)                                # compute/data_preparation.py
  |     +-- split_structures_and_depths(data)
  |     +-- transform_to_utm(lines, structure+depth wkts)
  |     +-- shapely.make_valid  (per obstacle)
  |
  +-- _compute_reach_distance(data, longest_length)                    # drift-speed * T99 of repair dist
  |
  +-- merge depths by unique level (optional optimisation)             # shapely.unary_union per level
  |
  +-- _precompute_spatial(...)                                         # = "spatial" progress phase
  |     +-- compute_min_distance_by_object(...)                        # geometries/get_drifting_overlap.py
  |     +-- compute_probability_holes_analytical(...)                  # geometries/analytical_probability.py
  |           +-- ThreadPoolExecutor (per leg x direction)
  |                 +-- _compute_single_direction_analytical(...)
  |                       +-- compute_probability_analytical(...)
  |                             +-- _vectorized_edge_y_intervals(...)
  |                             +-- _merge_intervals_across_slices(...)
  |                             +-- dist.cdf(array)                    # batched scipy CDF
  |
  +-- _precompute_shadow_layer(...)                                    # = "shadow" progress phase (0..50%)
  |     +-- ThreadPoolExecutor (per leg x direction)
  |           +-- _shadow_task(leg_idx, d_idx)
  |                 +-- _create_drift_corridor(...)
  |                 +-- _build_blocker_shadow(..., shadow_memo)
  |                 |     +-- extract_polygons(geom)
  |                 |     +-- create_obstacle_shadow(p, compass, bounds)  # cached per (id(geom),dir)
  |                 +-- _edge_geom_for(poly)
  |                       +-- _extract_obstacle_segments(poly)
  |                       +-- _edge_weighted_holes(...)                # batched drift filter + shapely
  |                       |     +-- segment_corridor_overlap_length(...)
  |                       +-- directional_distances_to_points(...)    # vectorised drift distance
  |                       +-- get_not_repaired(...)                   # analytical ndtr / Weibull
  |
  +-- _precompute_bucket_memo(...)                                     # = "shadow" progress phase (50..100%)
  |     +-- ThreadPoolExecutor (per (leg, dir, ship-bucket))
  |           +-- _compute_bucket(...)
  |                 +-- geom.difference(blocker_union)
  |                 +-- _analytical_hole_for_geom(reach, ...)
  |                       +-- extract_polygons + _extract_polygon_rings
  |                       +-- compute_probability_analytical(...)
  |                 +-- shapely.unary_union
  |
  +-- _iterate_traffic_and_sum(...)                                    # = "cascade" progress phase (60..90%)
  |     +-- clean_traffic(data)
  |     +-- for each leg, ship cell, direction:
  |           _process_cell_direction(...)
  |             +-- lookup bucket_memo entry
  |             +-- per-entry: accumulate allision/grounding/anchoring
  |             +-- _update_report(...)
  |             +-- _update_anchoring_report(...)
  |             +-- _add_direct_segment_contrib(...)
  |
  +-- create_result_layers(report, ...)                                # = "layers" phase
  +-- _auto_generate_drifting_report(data)                             # writes Markdown

The sections below open each box above, in the order the code executes.

_build_transformed(): lat/lon -> UTM

DriftingModelMixin._build_transformed() is a one-time geometry prep step that runs entirely on the calculation thread. It returns eight parallel lists used by every downstream helper.

Source: compute/drifting_model.py:1123 – _build_transformed()

Calls performed:

  1. compute.data_preparation.prepare_traffic_lists(data)() - returns (lines, distributions, weights, line_names).

    • lines is a list of shapely.geometry.LineString in EPSG:4326 (one per leg).

    • distributions is list[list[scipy.stats.rv_frozen]] – one list per leg with up to three superposed distributions parsed from mean1_1/std1_1/weight1_1 … etc.

    • weights is the matching list of floats summing to 1.

    • line_names are the human labels shown in reports.

  2. compute.data_preparation.split_structures_and_depths(data)() - converts the depths / objects lists of [id, value, wkt] into two lists of dicts with parsed shapely geometries. MultiPolygons are split into their component polygons so every entry has a single shapely.geometry.Polygon.

  3. compute.data_preparation.transform_to_utm(lines, obstacle_geoms)() - picks the UTM zone best covering the combined bbox, transforms every leg and obstacle once via QGIS QgsCoordinateTransform when running inside QGIS, or pyproj otherwise. All subsequent geometry math is in metres.

  4. shapely.make_valid() on every obstacle. If the result is a MultiPolygon it is again split into components. Each final polygon is stored with its WGS84 version (wkt_wgs84) so that result layers generated later use the same vertex order as the UTM version.

Output: (lines, distributions, weights, line_names, structures, depths, structs_gdfs, depths_gdfs, transformed_lines).

_compute_reach_distance()

Computes the “99th percentile drift distance”: how far a ship can drift before the repair distribution says it almost certainly got its engine back.

Source: compute/drifting_model.py:80 – _compute_reach_distance()

Logic:

  • If drift.repair.dist_type == 'weibull', uses scipy.stats.weibull_min(...).ppf(0.99).

  • Else if drift.repair.use_lognormal, uses scipy.stats.lognorm(...).ppf(0.99).

  • Multiplies by the drift speed (m/s) to get metres.

  • Caps at 10 x longest_leg_length so that a poorly-parameterised repair distribution can’t make the reach distance degenerate.

Depth merging (optional)

Before the spatial precompute, run_drifting_model() examines the set of depth polygons. If there are more polygons than unique depth values, the method merges all polygons with depth <= boundary into one cumulative polygon per boundary via shapely.unary_union(). The result is:

  • merged_depths_gdfs / merged_depths_meta - a much smaller set of obstacles used by the expensive spatial phase.

  • threshold_to_idx - maps any draught or anchor threshold to the index of the correct merged polygon. The cascade uses this to look up grounding / anchoring obstacles per ship cell in O(1).

This is the single biggest source of speedup for projects with dense bathymetry (tens of depth contours map to just a handful of unique levels).

Phase 1: _precompute_spatial() (spatial, 0–40 %)

Ship-independent pre-computation of everything that depends on leg geometry only.

Source: compute/drifting_model.py:1251 – _precompute_spatial()

Returns four lists, each indexed [leg_idx][math_dir_idx][obstacle_idx]:

  • struct_min_dists - nearest along-drift distance from leg to each structure (or None if the obstacle is out of reach in that direction). Computed by geometries.get_drifting_overlap.compute_min_distance_by_object().

  • depth_min_dists - same for depth (grounding / anchoring) polygons.

  • struct_probability_holes - \(h_X\) = probability of drifting far enough in the obstacle’s direction to hit it, from a random start on the leg. Computed by geometries.analytical_probability.compute_probability_holes_analytical() (default) or geometries.calculate_probability_holes.compute_probability_holes() (Monte Carlo, opt-in via data['use_analytical'] = False).

  • depth_probability_holes - same for depth polygons.

Inside the analytical path

compute_probability_holes_analytical() parallelises per (leg, direction) across a ThreadPoolExecutor with cpu_count() - 1 workers. Each worker calls _compute_single_direction_analytical(), which for each object calls compute_probability_analytical():

  1. Slice the leg into 100 cross-sections (s_values = midpoints of 100 equal intervals along the leg).

  2. For every edge of the obstacle and every slice, solve for the y-range of perp_offset values whose drift ray crosses that edge. This is done in one batched numpy call (_vectorized_edge_y_intervals()) over all slices x all edges.

  3. Per slice, merge the valid intervals into disjoint ones (_merge_intervals_across_slices(), batched over all slices).

  4. Flatten every merged interval into two 1-D arrays los and his across every slice.

  5. Evaluate the weighted distribution CDF once per distribution on both arrays (scipy’s dist.cdf is vectorised over array input), subtract, and sum. Divide by n_slices to get the probability hole.

Performance note: this used to call dist.cdf and _merge_intervals_vectorized per slice, which dominated compute_probability_analytical. Batching both turned the work into a handful of scipy calls per obstacle (see Code Flow: From “Run model” to Results’s performance timeline).

Phase 2: _precompute_shadow_layer() (shadow, 0–50 %)

For every (leg, direction) pair, build:

  • the drift corridor polygon,

  • the quad-sweep shadow for every reachable obstacle,

  • per-edge geometry (edge length fractions of the corridor overlap, along-drift distance of each edge, \(P_{NR}\) at that distance).

Source: compute/drifting_model.py:751 – _precompute_shadow_layer()

Pre-computation outside the thread pool:

  1. Build leg_precomputed[leg_idx] with dists_dir, w_dir (normalised weights), lateral_spread = 5 x weighted std of the leg’s lateral distribution, and a drifting.engine.LegState for the scalar fallback path.

  2. Compute a global shadow bounds: the bbox of all legs + all obstacle geometries, padded by max(1 km, reach_distance). This is passed to every call to create_obstacle_shadow(), which derives its extrude distance from the corridor bounds. Using a single global bound lets a per-polygon shadow cache hit across legs, because the extrude distance (and thus the shadow shape) is now the same for every call.

Per-task work (_shadow_task(leg_idx, d_idx)):

  1. Build the drift corridor via compute.drift_corridor_geometry._create_drift_corridor(): two rectangles (leg rect + drifted rect) unioned, falling back to convex hull if union produces a MultiPolygon.

  2. For every structure and every depth (filtered via struct_min_dists / depth_min_dists to those within reach_distance):

    1. Build the quad-sweep shadow -> _build_blocker_shadow().

    2. Build per-edge geometry -> inner _edge_geom_for(poly).

  3. Return (key, entry) where entry has corridor, bounds, dists_list, weights_arr, lateral_spread, shadow (dict of (type, idx) -> Polygon), and edge_geom (dict of (type, idx) -> list[edge-dict]).

Futures are collected with concurrent.futures.as_completed(), progress is reported every ~5 % of completed tasks, and a cancellation check aborts the remaining work if the user clicks stop.

Shadow cache helper: compute/drifting_model.py:130 – _build_blocker_shadow()

_build_blocker_shadow()

Memoises the full obstacle shadow (union over all Polygon components) by (id(geom), compass_angle). Because every leg passes the same Python object for a given obstacle, the cache hits (legs - 1) x 8 times per obstacle.

Implementation:

  1. If id(geom), compass_angle already has a cached shadow, return it.

  2. Call geometries.drift.shadow.extract_polygons(geom)() to split MultiPolygons.

  3. For each component Polygon call geometries.drift.shadow.create_obstacle_shadow(), which:

    1. Computes an extrude distance = 2 * corridor_diagonal.

    2. Translates the polygon that far in the drift direction.

    3. Builds one quad per original edge connecting original -> translated vertices. Quads with zero shoelace area are skipped (the previous implementation called quad.is_valid / quad.area per quad, which was >1 M shapely dispatch calls per proj.omrat run).

    4. Unions original + translated + quads into the final shadow polygon.

  4. If more than one component, shapely.ops.unary_union() the per-component shadows.

  5. Cache and return.

Inner _edge_geom_for() – per-edge h_eff with 1D shadow-carve

Works per obstacle inside _shadow_task. The result ([{'seg_idx', 'edge_h_eff', 'reachable_width_m', 'edge_dist', 'edge_p_nr'}, ...]) is used by the cascade to compute each polygon edge’s contribution INDEPENDENTLY. Each edge is treated as a physical “hazard wall” that a drifting ship strikes as its first-contact obstacle; ships that would strike a closer edge of the same polygon never reach a farther edge behind it.

The formula per edge is \(edge\_h\_eff = reachable\_width / leg\_drift\_width\), where leg_drift_width is the leg’s projection onto the axis perpendicular to the drift direction (E-W for southward drift) and reachable_width is the perpendicular-to-drift extent of the edge that is not already covered by a closer edge of the same polygon. Between-polygon shadowing (from other closer obstacles) is applied separately in _apply_hit_entry() via \(shadow\_ratio = h\_eff / hole\_pct\), so the full per-edge contribution is

\[contrib = base \cdot rp \cdot (edge\_h\_eff \cdot shadow\_ratio) \cdot edge\_p\_nr(edge\_dist)\]

Case studies

The following canonical shapes show how the 1D shadow-carve reacts to the polygon geometry. In every panel the leg is horizontal at the top, ships drift south, and each polygon’s facing edges are marked green. The right panel of each figure additionally draws sample ships as red arrows that terminate on the FIRST edge they hit; edges (or portions of edges) that are fully shadowed are drawn dashed grey.

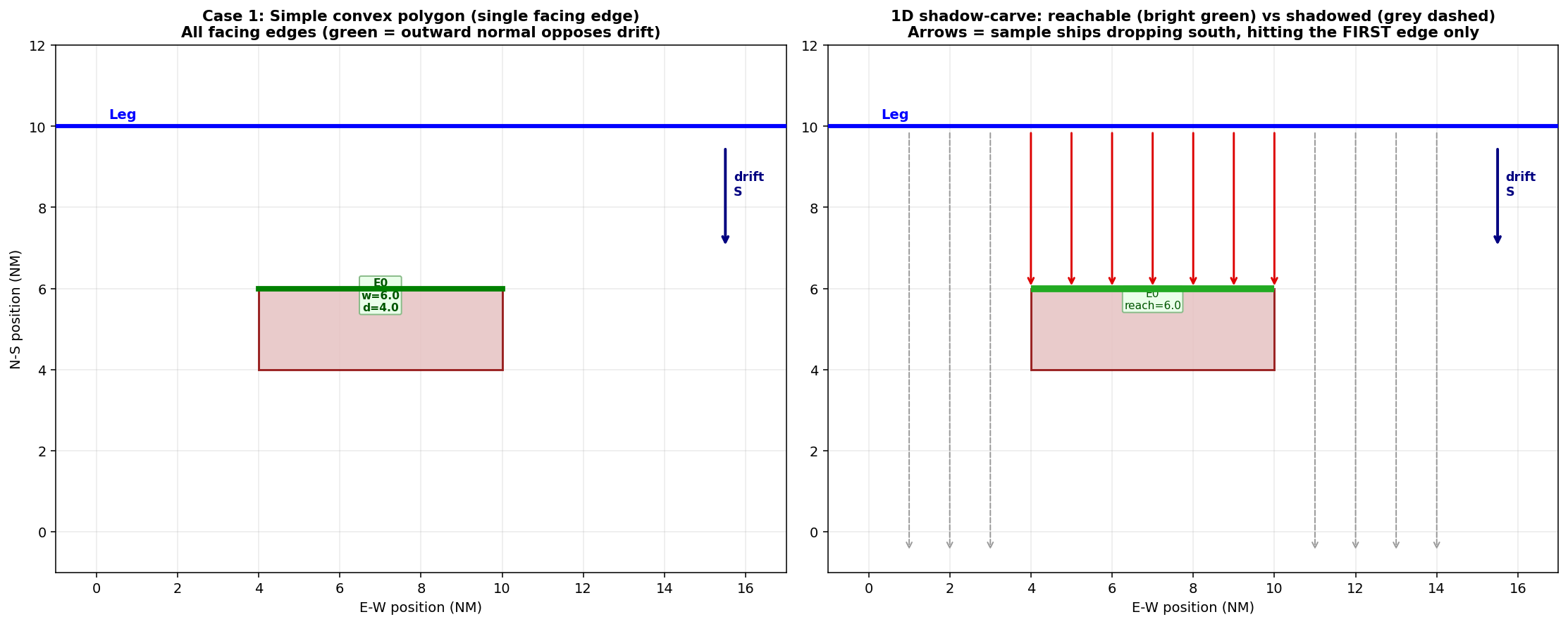

Simple convex polygon – only one facing edge, reach == width.

Simple convex polygon

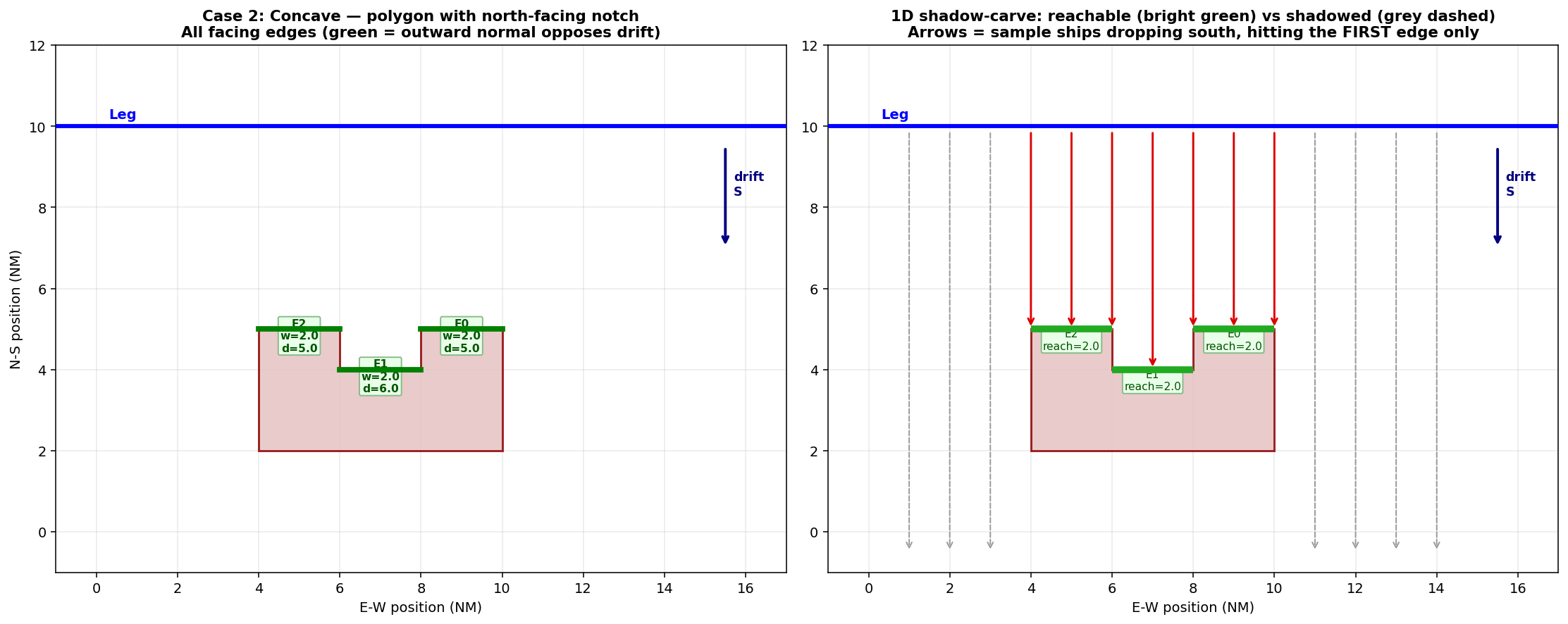

Concave polygon with a north-facing notch – three facing edges; the notch back-edge is farther, but not shadowed because its E-W range doesn’t overlap the closer arm edges.

Concave polygon with N-facing notch

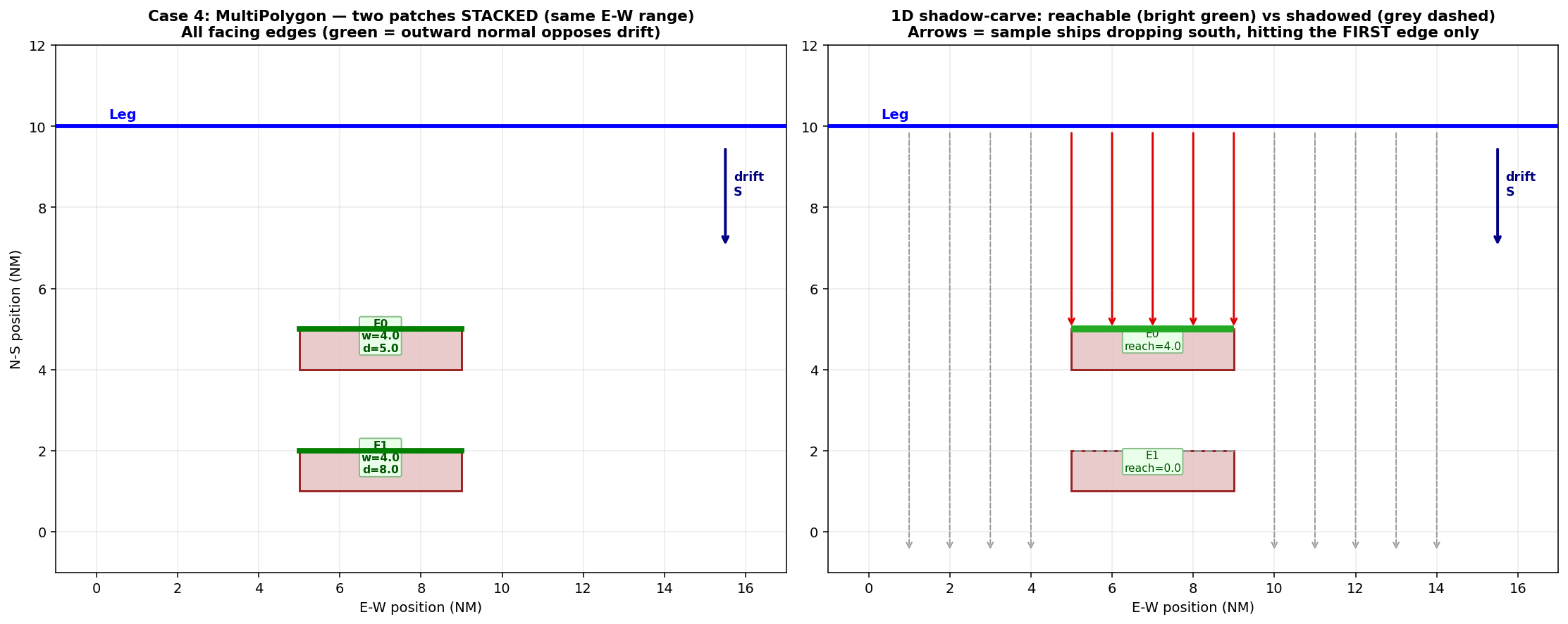

MultiPolygon stacked N-S (same E-W range) – the closer patch fully shadows the farther patch: reachable_width of the far edge is zero and it contributes nothing. This is the “a ship grounds once” rule – physically correct, and different from a naive per-edge sum which would double-count.

Stacked multipolygon patches

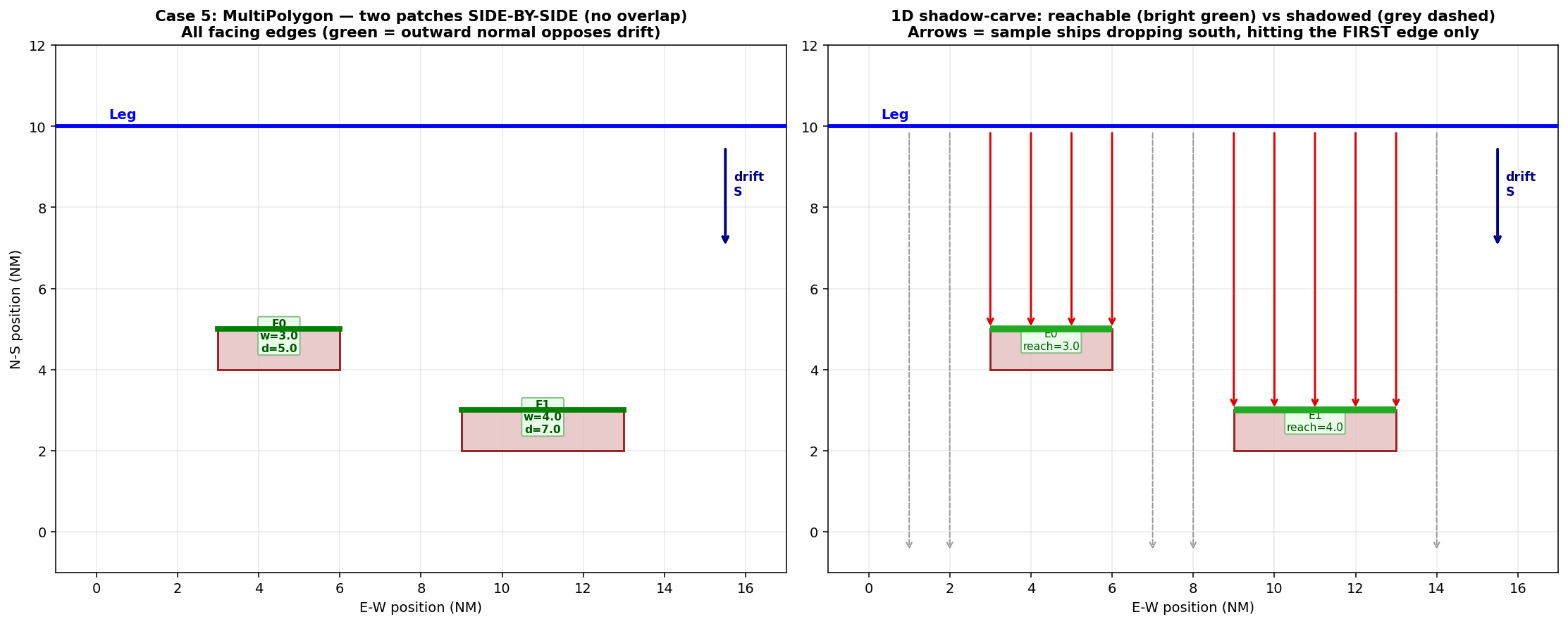

MultiPolygon side-by-side (disjoint E-W ranges) – no overlap in the perpendicular-to-drift axis, so both patches contribute their full edge widths; each edge has its own edge_dist and hence its own edge_p_nr.

Side-by-side multipolygon patches

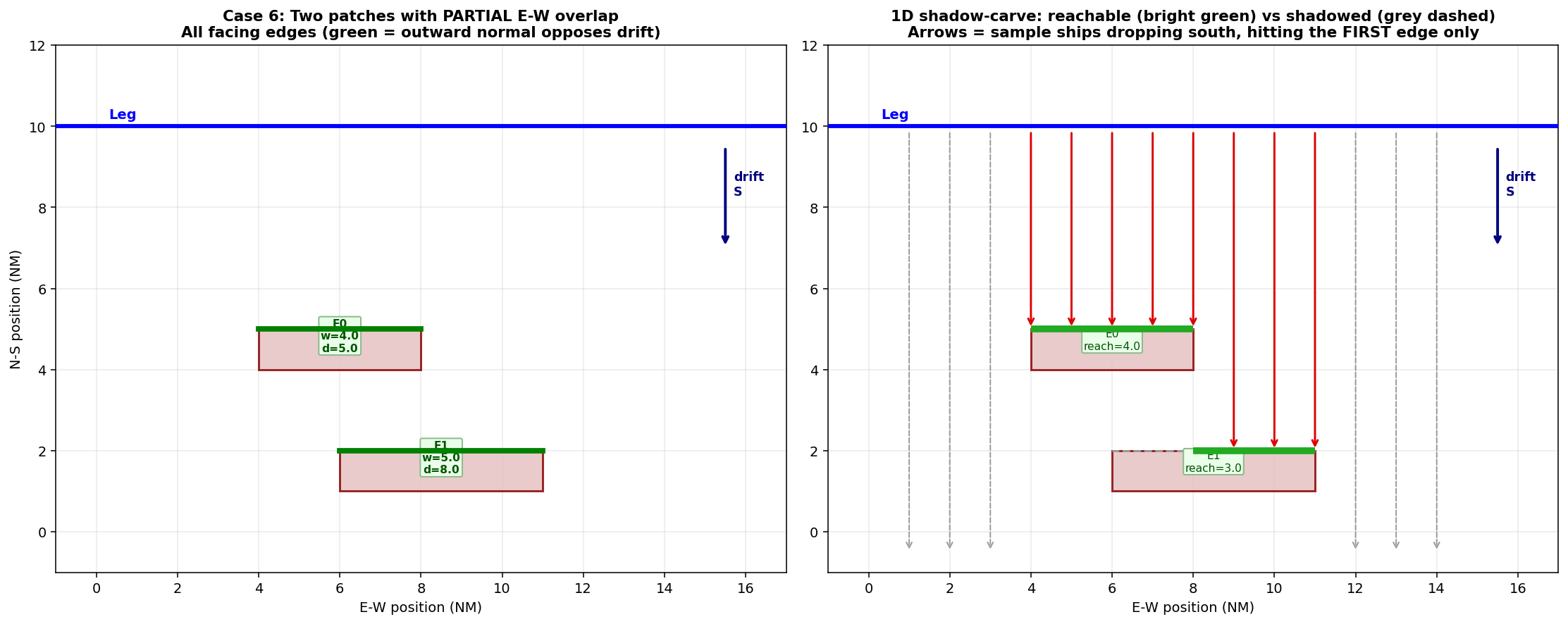

MultiPolygon partially overlapping – the far edge only gets the portion that isn’t shadowed by the near edge; reachable_width for the far edge is the E-W range where ships pass over the near patch and continue south.

Partially overlapping patches

Algorithm

  1. segments = _extract_obstacle_segments(poly) - polygon edges as a list of ((x0,y0), (x1,y1)) tuples with CCW-normalised orientation so the outward normal is well-defined.

  2. Drop segments whose outward normal doesn’t oppose the drift direction (pre-filter via segment_corridor_overlap_length()). The survivors are the “facing” edges of the polygon for this compass direction.

  3. Sort surviving edges by along-drift distance (closest first) and run a 1D interval subtraction on the perpendicular-to-drift axis: each edge’s remaining ranges (after subtracting already-covered ranges from closer edges) become its reachable_intervals, and their combined length is reachable_width. Implemented in compute_edge_reachable_widths_1d().

  4. Collect endpoints of edges with reachable_width > 0 and call geometries.get_drifting_overlap.directional_distances_to_points() once on the flat (2N, 2) array. The reference line is the leg centerline by default; set drift['use_leg_offset_for_distance'] = True to measure from the leg shifted by the traffic-distribution mean instead. The lateral standard deviation is not used – only the mean.

  5. For each edge, average its two endpoint distances -> edge_dist. Compute \(edge\_h\_eff = reachable\_width / leg\_drift\_width\) and \(P_{NR}(edge\_dist)\) via compute.basic_equations.get_not_repaired().

Back-tracing

The drifting report emits edge_calc_meta per (obstacle, edge, leg_direction). Every entry stores hole_pct, h_eff, reachable_width_m, edge_h_eff, shadow_ratio, edge_dist_m, edge_p_nr, edge_hole, exposure_sum, cell_count and contrib_sum, so users can back-trace every edge’s contribution to the formula above. The Markdown appendix renders the top 50 contributing edges as a table.

Phase 3: _precompute_bucket_memo() (shadow, 50–100 %)

Eagerly evaluates the shadow-coverage cascade for every distinct “ship bucket” per (leg, direction). A bucket is the set of (obstacle_type, obstacle_idx) tuples a ship sees given its draught (grounding index) and anchor threshold (anchoring index). Many ships share the same bucket, so doing the carving once per bucket turns the later traffic cascade into pure arithmetic.

Source: compute/drifting_model.py:1090 – _precompute_bucket_memo()

Per bucket:

  1. Sort obstacles by along-drift distance.

  2. Walk the sorted list maintaining a running blocker_union (for grounding/allision) and anchor_union (for anchoring). The shadows come from the memo built in Phase 2.

  3. For each obstacle:

    • Carve reach = geom.difference(blocker_union) - the part of the obstacle still reachable past closer blockers.

    • h_reach = _analytical_hole_for_geom(reach, ...)() - the probability hole of the carved region, computed via the same compute_probability_analytical() used in Phase 1.

    • h_in_anchor = probability hole of the carved region that ALSO intersects the anchoring region - so anchoring ships are subtracted out correctly.

  4. Result: memo[(leg, dir, bucket_key)] = [{'obs_type', 'obs_idx', 'dist', 'hole_pct', 'h_reach', 'h_in_anchor'}, ...].

Parallelised the same way as the shadow layer.

Phase 4: _iterate_traffic_and_sum() (cascade, 60–90 %)

Walks the traffic_data dict and accumulates contributions using the bucket memo. The outer structure is:

for leg_idx, line in enumerate(transformed_lines):
    for cell in ship_cells[leg_idx]:
        for d_idx in range(8):
            a_delta, g_delta, an_delta = _process_cell_direction(...)

Source: compute/drifting_model.py:1454 – _iterate_traffic_and_sum()

Each ship cell contributes:

\[\mathrm{base}_{i,k} = \frac{L_i}{v_k \cdot 1852/3600} \cdot f_{i,k} \cdot \frac{\lambda_{bo}(\mathrm{ship\_type})}{365.25 \cdot 24}\]

and the per-direction contribution is:

\[\Delta = \mathrm{base}_{i,k} \cdot r_{p,d} \cdot h_{\mathrm{eff}} \cdot P_{NR}(d_{\mathrm{edge}})\]

_process_cell_direction() does the inner work:

Source: compute/drifting_model.py:1753 – _process_cell_direction()

  1. Build the obstacle list for this cell (respecting draught + anchor threshold), compute bucket_key from the tuple of sorted (type, idx) pairs.

  2. Look up entries = bucket_memo[(leg_idx, d_idx, bucket_key)]. On a memo miss (rare), fall back to the pre-computed hole_pct without any shadow carving.

  3. For each entry:

    • Compute h_eff = max(0, h_reach - anchor_p * h_in_anchor).

    • If the obstacle has precomputed per-edge geometry, sum contrib = base * r_p * (h_eff * len_frac) * edge_p_nr across edges. Otherwise fall back to the obstacle-level contrib = base * r_p * h_eff * P_NR(dist).

    • Call _update_report() / _update_anchoring_report() to record the per-leg-direction breakdown.

    • Call _add_direct_segment_contrib() to record the per-edge contribution so the result layer can colour the exact polygon edges that dominated the risk.

  4. Accumulate (allision_delta, grounding_delta, anchoring_delta).

Progress is reported approximately every 1 % of cascade completion.

Completion (layers, 90–100 %)

After the cascade finishes run_drifting_model() does three things on the calculation thread:

  1. Applies the user’s risk-reduction factors (pc.allision_drifting_rf, pc.grounding_drifting_rf) to the totals and stores the final numbers on self.

  2. Calls geometries.result_layers.create_result_layers() to build two QgsVectorLayer objects that colour each obstacle polygon by its contribution to the total risk. Layer creation is graduated by Jenks natural breaks (or single-class fallback).

  3. Calls _auto_generate_drifting_report() which delegates to DriftingReportBuilderMixin.write_drifting_report_markdown() (mixin from compute/drifting_report_builder.py). The report writes a Markdown file with:

    • Totals per accident type,

    • Per leg-direction tables,

    • Per obstacle tables (with drill-down to per-segment contributions),

    • Debug obstacle blocks when drift.debug_trace = True.

Finally the two result line-edits are updated:

self.p.main_widget.LEPDriftAllision.setText(f"{self.drifting_allision_prob:.3e}")
self.p.main_widget.LEPDriftingGrounding.setText(f"{self.drifting_grounding_prob:.3e}")

Function reference

A flat list of every function reached from run_drifting_model(), grouped by source file.

compute/drifting_model.py

  • run_drifting_model - orchestrator (this chapter).

  • _build_transformed - UTM projection + make_valid.

  • _compute_reach_distance - T99 repair distance in metres.

  • _merge_depths_by_threshold - optional per-threshold merge of depth polygons that share unique depth values; many traffic draughts then index into the same merged geometry.

  • _precompute_spatial - min-distances + probability holes.

  • _precompute_shadow_layer - corridor/shadow/edge geom per (leg, dir). Now slimmer: pre-computes are pulled out into _compute_global_shadow_bounds() (uniform extrude bounds for the shadow memo) and _precompute_leg_lateral_params() (per-leg lateral-distribution scalars + LegState).

  • _run_shadow_pool - dispatch the per-(leg, dir) worker across threads (or sequentially for tiny inputs); reports progress and honours cancellation. Extracted from _precompute_shadow_layer.

  • _precompute_bucket_memo - shadow cascade per ship bucket.

  • _iterate_traffic_and_sum - traffic cascade.

  • _process_cell_direction - per cell x direction contribution.

  • _build_blocker_shadow - cached per-obstacle quad-sweep union.

  • _edge_weighted_holes - distribute hole across polygon edges by corridor overlap length.

  • _analytical_hole_for_geom - probability hole for a carved geometry; wraps compute_probability_analytical().

  • _update_report / _update_anchoring_report / _add_direct_segment_contrib - report bookkeeping (in DriftingReportBuilderMixin).

  • _auto_generate_drifting_report - writes Markdown report.

compute/data_preparation.py

  • prepare_traffic_lists - builds (lines, distributions, weights, line_names) for every leg.

  • split_structures_and_depths - parses WKT, splits MultiPolygons.

  • transform_to_utm - picks UTM zone; uses QGIS or pyproj.

  • clean_traffic - flattens traffic_data into per-leg cell lists.

  • get_distribution - parses a segment’s lateral distributions.

compute/basic_equations.py

  • get_not_repaired - analytical \(P_{NR}\); dispatches to cached scipy.special.ndtr() (normal / lognormal) or direct Weibull formula, else compiles func once and re-uses.

  • powered_na - shared helper used by the powered model.

  • get_drifting_prob / get_drift_time - legacy scalar helpers.

  • SHIP_TYPE_NAMES / default_blackout_by_ship_type - per-type blackout rate table.

compute/drift_corridor_geometry.py

  • _create_drift_corridor - leg-rect + drift-rect unioned.

  • _extract_obstacle_segments - polygon edges as [(p0, p1), ...].

  • _segment_intersects_corridor - kept for tests / callers outside the hot path.

  • segment_corridor_overlap_length - drift-direction pre-filter then corridor intersection in one shapely pass.

  • _compass_idx_to_math_idx - 0..7 compass -> math direction.

geometries/analytical_probability.py

  • compute_probability_holes_analytical - top-level batch across all legs/directions/objects. ThreadPoolExecutor.

  • _compute_single_direction_analytical - per (leg, dir) worker.

  • compute_probability_analytical - per obstacle; batched CDF.

  • _vectorized_edge_y_intervals - numpy batch of (slice x edge) y-intervals.

  • _merge_intervals_vectorized - single-slice merge (tests / callers outside the hot path).

  • _merge_intervals_across_slices - flat merged intervals across every slice (hot-path helper).

  • _extract_polygon_rings - polygon rings as numpy arrays.

geometries/get_drifting_overlap.py and helper modules

The original 1400-line module has been split into four files; the top-level facade (get_drifting_overlap.py) re-exports the public helpers so existing callers don’t need to update imports.

geometries/drift_overlap_geometry.py – pure-data helpers (no Qt / matplotlib):

  • create_polygon_from_line - leg buffered by the weighted lateral distribution.

  • extend_polygon_in_directions - sweep that polygon in 8 drift directions; returns one corridor polygon per direction.

  • compare_polygons_with_objs – per (polygon, gdf, obj) overlap matrix.

  • estimate_weighted_overlap - PDF-weighted coverage of an intersection polygon.

  • compute_coverages_and_distances - flat per-(polygon, gdf, obj) coverage + distance arrays.

  • compute_min_distance_by_object - per (leg, dir, obstacle) minimum along-drift distance.

  • directional_distances_to_points - vectorised per-point along- drift distance (used by _edge_geom_for).

  • directional_min_distance_reverse_ray - wraps the helper above to return the min across a polygon’s vertices.

geometries/drift_overlap_plot.py – the bottom-axis matplotlib plot:

  • visualize - paints PDF + failure-remains \(P_{NR}\) curve + green “intersection extent” axvspan, with a picture-in-picture zoom inset.

geometries/drift_overlap_sidebar.py – Qt sidebar builder:

  • DIRECTION_LABELS / polygon_to_compass - 8 directions in the order the geometry helpers iterate.

  • split_leg_name / lookup_contribution - parse leg names, look up contrib_grounding / contrib_allision from the calc’s drifting_report['by_leg_direction'].

  • build_overlap_sidebar - construct the sortable QTableWidget used as the overlap-dialog sidebar.

geometries/get_drifting_overlap.py – the DriftingOverlapVisualizer class itself drives the three matplotlib axes (ax1 legs, ax2 direction polygons, ax3 PDF). show_in_dialog is the dialog factory used from the View buttons in AccidentResultsMixin.

geometries/drift/shadow.py

  • create_obstacle_shadow - quad-sweep shadow polygon.

  • _create_edge_quads - N quad polygons per obstacle edge (shoelace-filtered, no shapely validity).

  • extract_polygons - flatten Polygon / MultiPolygon / GeometryCollection to a list of Polygons.

geometries/result_layers.py

  • create_result_layers - builds allision + grounding QgsVectorLayer from the drifting report.

geometries/calculate_probability_holes.py

Monte-Carlo alternative to the analytical path, used when data['use_analytical'] = False. Same pipeline shape with ThreadPoolExecutor parallelism, but every p_hole is estimated by sampling rather than integrated analytically.

Debug trace

Setting data['drift']['debug_trace'] = True enables a per-obstacle debug path in _iterate_traffic_and_sum() that records exposure_factor, base, rp, freq, dist, h_eff, and the accumulated contribution into report['debug_obstacles']. The debug block is embedded in the auto-generated Markdown report, giving a line-by-line breakdown of every obstacle / leg / direction.
